Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel pipe cap in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable stainless steel pipe cap in stock here from our factory. Also, quotation is available.

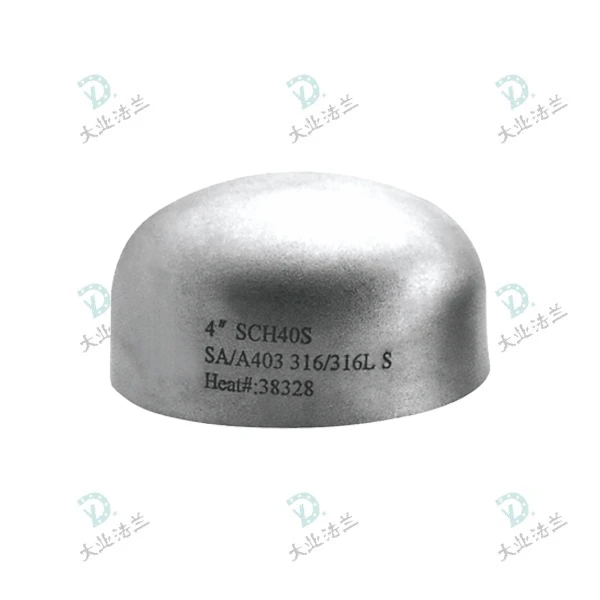

Pipe Cap are a core type of steel butt-weld fitting. Welded to pipeline ends via butt welding, they act as pressure-rated sealing components at line terminals, permanently closing off pipe runs and blocking media flow.
Standard butt-weld caps feature a domed head with smooth radius transitions, with a weld bevel machined at the end to match the mating pipe. Once welded, they form an integrated sealed assembly with the pipeline. For small-diameter applications, variants with socket-weld or threaded connections are also available.
Key functions of Pipe Cap: pipe end closure, pressure-tight sealing assurance, pipe opening protection, and fluid shock mitigation.
Parameters
|
Standard: |
GB/T12459-2025, GB/T13401-2017, SH3408, ASME B16.9, ASME B16.11, MSS SP-43, EN 10253-2/DIN 2617, JIS B2311 |
|
Size: |
Seamless:1/2"-24" Welded:1/2"-48" |
|
Thickness: |
SCH5S-XXS |
|
Grade: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H,310S Super stainless steel: 254SMO/F44, 904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625,600, 718, 750,601), Hastelloy(276,C-22,C-4,C,X,B-2), Monel(400,500), Incoloy(800,825,020,028,925),etc |
Product Advantage
- Exceptional sealing reliability
- Excellent corrosion resistance
- Compact, space-saving structure
Applications
Petrochemical industry
Natural gas and oil & gas transmission
Marine and offshore engineering
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: Both butt-weld caps and blind flanges can seal off pipelines. How to choose between them?
A: The core distinction lies in disassembly demand. A butt-weld cap creates a permanent welded closure: it has a compact build, low cost and reliable sealing performance, and is ideal for permanently closed pipe runs. A blind flange enables detachable flange-type closure with easy assembly and disassembly, making it suitable for scenarios requiring regular maintenance, pressure testing or temporary plugging.
Q: How to select the wall thickness of a Stainless Steel Pipe Cap?
A: It is generally selected to match the pipe's wall thickness schedule (Schedule number, e.g. Sch10S, Sch40S, Sch80S). The end wall thickness of the pipe cap must not be less than the nominal wall thickness of the connected pipe. For high-pressure and high-temperature services, wall thickness shall be calculated based on design pressure, operating temperature and material allowable stress.
Q: How to choose between 304 and 316L stainless steel pipe caps?
A: 304 stainless steel fits ordinary clean water, atmospheric environments and mildly corrosive conditions. With lower cost, it is the standard general-purpose option. 316L contains molybdenum, which greatly enhances resistance to chloride ions and organic acid corrosion. It is recommended for seawater, chemical media, coastal high-salt spray environments, as well as food and pharmaceutical sanitary-grade applications.
Q: What inspections are required after welding the pipe cap?
A: Routine inspections include visual and dimensional verification, and weld penetrant testing (PT). For high-pressure and hazardous media services, radiographic testing (RT) or ultrasonic testing (UT) shall be supplemented. Stainless steel pipe caps with corrosion resistance requirements also need pickling and passivation treatment and intergranular corrosion testing.
