Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of npt threaded flange in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable npt threaded flange in stock here from our factory. Also, quotation is available.
Threaded flange is a type of flange that requires no welding to pipes. Threads are machined inside the flange bore, which connect to pipes with external threads to form a complete pipeline system.
Thread precision of the flange is critical and holds the key to reliable sealing of the connection. Our threaded flanges are precision-machined on fully automatic CNC machine tools. Machining is carried out strictly in accordance with specifications of different thread types and relevant standards. High-precision lathes minimize manufacturing tolerances to guarantee consistent product quality.

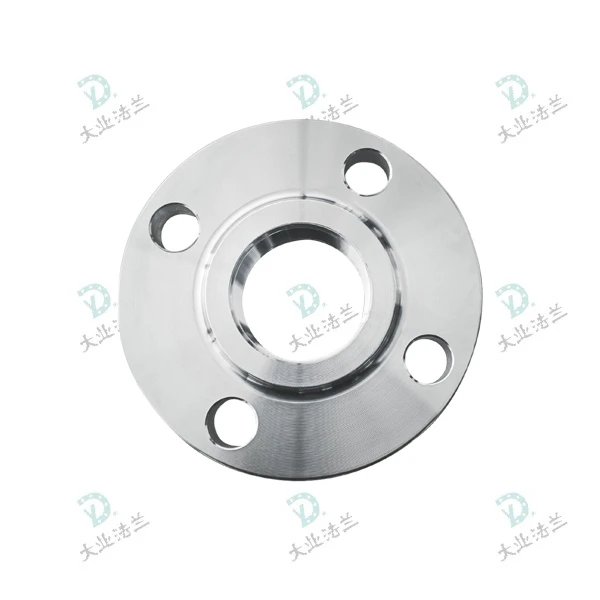

NPT threaded flange comes with internal NPT thread as standard under ASME B16.5. For EN 1092-1, the standard internal thread is BSPT/BSPP (Rp). Custom machining of other thread types is available upon your request.
Parameters
|
Standard: |
ASME B16.5, DIN EN 1092-1, GOST 33259, JIS B2220, AWWA-C207, MSS SP-44, Customization |
|
Certifications: |
PED/CE, ISO9001, ISO 45001, ISO14001 |
|
Size: |
1/2"-12"/Dn10-Dn600 |
|
Rating: |
Class150-Class2500/Pn10-Pn100 |
|
Material: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H, 310S Super stainless steel: 254SMO/F44, 904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625, 600, 718, 750, 601), Hastelloy(276, C-22, C-4, C, X, B-2), Monel(400, 500), Incoloy(800, 825, 020, 028, 925),etc |
|
Facing: |
FF/RF/MFM |
Product Advantage
- Easy for installation and maintenance.
No welding required and simple to disassemble, ideal for pipelines that demand frequent inspection and maintenance.
Applications
- Suitable for special working conditions
flammable and explosive environments, sites without welding conditions, and pipelines made of materials with poor weldability. It is applicable for low-pressure service.
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Process
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: Can threaded flanges be disassembled and reused?
A: They can be disassembled for repeated use. However, threads must be inspected for wear before each assembly. Replace the flange if obvious thread wear is found.
Q: What are the differences between NPT threaded flanges and BSPT threaded flanges?
A: For applicable threaded flange standards: NPT threaded flange is the default thread for ASME flanges, while BSPT is adopted for EN 1092 flanges;
For thread angle, they have different thread profile and thread type.
For sealing performance,NPT achieves sealing via thread engagement with no additional gasket required. BSPT requires an extra gasket for sealing.
Q: What is the MOQ?
A: We don't have MOQ,but the more quantity,the price lower.
Q: What are your payment terms?
A: Perfer TT,L/C also acceptable.
Q: What surface finish do you provide?
A: 125-150AARH/,we can also customize accoding to your requirements.
