Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel tube sheet in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable stainless steel tube sheet in stock here from our factory. Also, quotation is available.

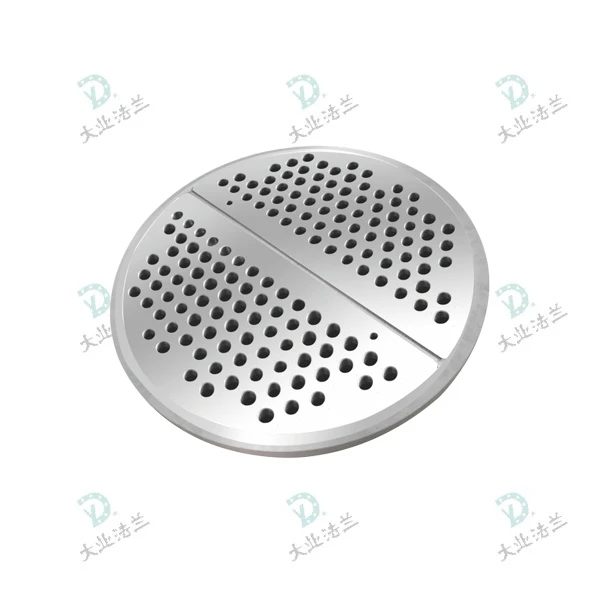

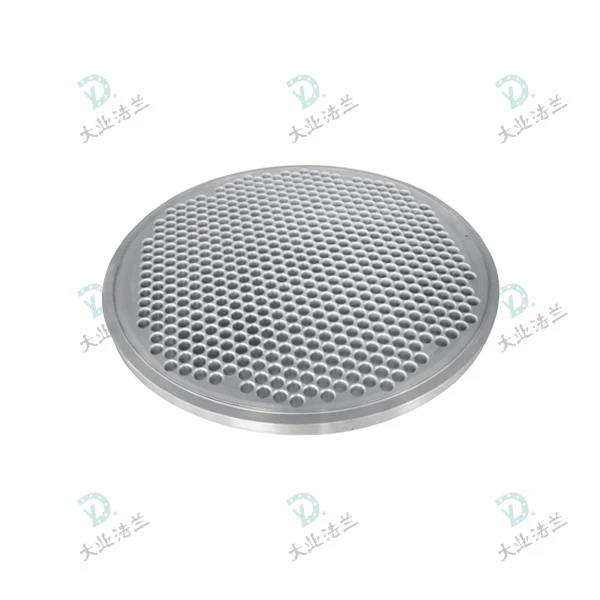

Tube Sheet is a core component of pressure vessels such as heat exchangers, condensers and reactors. Its main function is to secure heat exchange tubes penetrating through holes on the Tube Sheet, enabling heat exchange and isolation between different media.
This special structure requires tight control of raw‑material grain size and tube‑hole machining precision. Insufficient grain size or uneven microstructure causes drilling‑induced material defects and poor service performance. Over‑tolerant drilling results in tube‑assembly fit issues, undermining heat‑exchanger operation.
Our Tube Sheets are manufactured from premium raw materials. Forging stabilizes the internal structure of the material, and standardized heat treatment improves grain size, tensile strength and impact resistance. Besides, our high-precision CNC machine tools accurately control tube hole machining to guarantee consistent product quality.
For corrosive working conditions, we recommend duplex steel or stainless steel tube sheets, which can greatly enhance resistance to corrosion and extend service life.
Parameters
|
Standard: |
According to the drawing, GB/T 151, ASME VIII, EN13445, |
|
Certifications: |
PED/CE,ISO9001, ISO 45001, ISO14001 |
|
Size: |
1/2"-160"/Dn10-Dn4000 |
|
Rating: |
According to the drawing |
|
Material: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H, 310S Super stainless steel: 254SMO/F44, 904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625, 600, 718, 750,601), Hastelloy(276, C-22, C-4, C, X, B-2), Monel(400,500), Incoloy(800, 825, 020, 028, 925),etc |
|
Facing: |
- |
Product Advantage
- Robust structure with stable pressure bearing capacity.
Connected to heat exchange tubes via multiple holes, it can effectively reduce vibration generated during heat exchanger operation.
Applications
- Heat exchangers
- Condensers
- Reactors
- Other pressure vessels
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Process
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: Can you guarantee the flatness of Tube Sheet and perpendicularity of tube holes?
A: Our production is strictly implemented in accordance with the dimensional requirements specified on drawings. We will inform you in advance if any specifications cannot be satisfied.
Q: For seawater service, should we adopt stainless steel tube sheet or duplex steel tube sheet?
A: We recommend ASTM A182 F51 (2205) as priority choice. Seawater contains high concentration of chloride ions. Stainless steel tube sheet has weaker resistance to chloride-induced corrosion compared with duplex steel, hence duplex steel is suggested.
Q: What is the MOQ?
A: We don't have MOQ,but the more quantity,the price lower.
Q: What are your payment terms?
A: Perfer TT,L/C also acceptable.
Q: What surface finish do you provide?
A: 125-150AARH/,we can also customize accoding to your requirements.
