Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of super duplex steel 2507 blind flange in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable super duplex steel 2507 blind flange in stock here from our factory. Also, quotation is available.

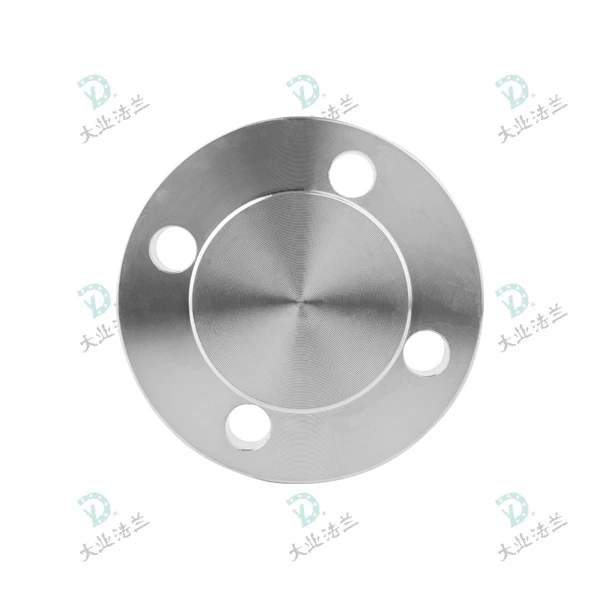

Blind flange is a non-bored flange with a simple structure. As a piping component in industrial systems, it is used to seal pipe ends. It can also be deployed for sectional maintenance of pipeline systems and medium isolation.
Our blind flanges are manufactured strictly in accordance with relevant standards from solid forgings. For Super Duplex Steel 2507 Blind Flanges in particular, advanced forging technology and fully compliant production processes help guarantee uniform internal grain size and stable microstructure, delivering reliable mechanical properties.
Apart from Super Duplex Steel 2507 Blind Flanges, we supply blind flanges in a wide range of materials including stainless steel, super stainless steel and special alloys to meet customers' requirements under diverse working conditions.
Athough,blind flanges look like plate flanges with no bore, but they offer more sealing face types than PL flanges. Besides RF and FF, RTJ, MFM and TG faces are also available with higher tightness.
Parameters
|
Standard: |
ASME B16.5,DIN EN 1092-1, GOST 33259, JIS B2220, AWWA-C207, MSS SP-44, Customization |
|
Certifications: |
PED/CE,ISO9001, ISO 45001, ISO14001 |
|
Size: |
1/2"-160"/Dn10-Dn4000 |
|
Rating: |
Class150-Class2500/Pn10-Pn400 |
|
Material: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H, 310S Super stainless steel: 254SMO/F44, 904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625, 600, 718, 750, 601), Hastelloy(276, C-22, C-4, C, X, B-2), Monel(400, 500), Incoloy(800, 825, 020, 028, 925),etc |
|
Facing: |
RF/FF/RTJ/MFM/TG |
Product Advantage
- Excellent pressure resistance
- Easy for maintenance
- Solid forging ensures superior performance
Applications
Pipe ends of various pipelines
Block the pipeline to avoid medium leakage.
Reserved connections
Used to temporarily seal reserved connections for future expansion while maintaining pipeline integrity.
System maintenance & safe isolation
Provide positive isolation during pipeline maintenance to avoid medium leakage.
Pressure testing
Temporary closure for pressure and leak testing.
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Process
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: When should Super Duplex Steel 2507 blind flanges be selected?
A: Normally, blind flanges need to share the same material as mating pipe flanges. If the entire pipeline uses Super Duplex 2507, the supporting blind flanges should be 2507 as well. They are primarily applied for chloride-containing working conditions including seawater.
Q: Is the material forged or plate?
A: We normally forge from round steel billets. For extra-large diameters, cut plate will only be used occasionally with the customer's approval.
Q: Can you provide forging certificate?
A: Yes,we can.We can offer material certificate.
Q: What is the MOQ?
A: We don't have MOQ,but the more quantity,the price lower.
Q: What are your payment terms?
A: Perfer TT,L/C also acceptable.
Q: What surface finish do you provide?
A: 125-150AARH/,we can also customize accoding to your requirements.
