Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of ss 316l paddle blind in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable ss 316l paddle blind in stock here from our factory. Also, quotation is available.

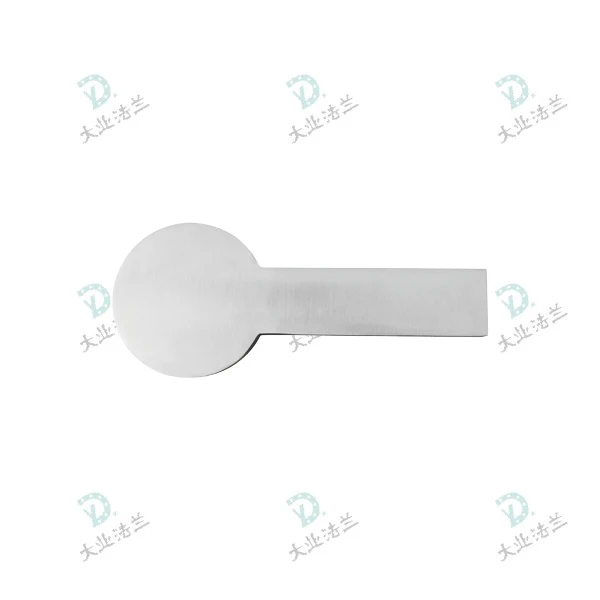

Paddle blind, also known as spade blind, is a special fitting for physical isolation of pipelines. Compared with spectacle blind, it features a simpler structure, consisting of a circular plate and an extended handle, shaped similar to a table tennis racket.
Functionally, it is not as flexible as a spectacle blind, yet it serves a clear purpose at a lower cost. It is suitable for pipelines that do not require frequent switching between open and closed status.
In terms of material selection, we can offer suitable materials according to customers' various requirements.
S S304 paddle blind applies to pipelines carrying weak acid, weak alkali and general media;
SS 316L paddle blind delivers excellent corrosion resistance and is used for corrosive services such as petrochemical industry;
Duplex steel 2205 / 2507 paddle blind is suitable for pipelines with strong corrosion and high pressure.
During production, we strictly control dimensional accuracy. Material Test Certificates (MTC) and product traceability are available to meet customers' diverse acceptance requirements.
Parameters
|
Standard: |
ASME B16.48, ASME B31.3, HG/T 21547, Customization |
|
Certifications: |
PED/CE,ISO9001, ISO 45001, ISO14001 |
|
Size: |
1/2"-24"/Dn10-Dn600 |
|
Rating: |
Class150-Class2500 |
|
Material: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H, 310S Super stainless steel: 254SMO/F44, 904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625, 600, 718, 750, 601), Hastelloy(276, C-22, C-4, C, X, B-2), Monel(400,500), Incoloy(800, 825, 020, 028, 925),etc |
|
Facing: |
FF/RF/RJ/MFM/TG |
Product Advantage
Visual indication of pipeline status
No indicator hole on the handle end represents paddle blank in service, meaning the pipeline is blocked.
High sealing performance
Complete shut‑off of medium flow
Suitable for confined installation space
Applications
Scenarios for temporary maintenance
Pipelines for flammable, explosive and volatile media
Double sealing can be achieved by using a paddle blind
Permanently blocked pipelines
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Process
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: Is a paddle blind always purchased together with a paddle spacer?
A: It depends. If the pipeline is permanently blocked and will not be put into service again, only a paddle blind is required. If it is for temporary maintenance, it shall be purchased together with a matching paddle spacer.
Q: How to choose between a paddle blind and a blind flange?
A: Paddle blind must be installed between two mating flanges. It costs much less than a blind flange and allows flexible disassembly & assembly.
Blind flanges are more suitable for high-pressure and high-temperature working conditions.
Q: Where are SS 316L paddle blinds commonly applied?
A: SS 316L paddle blinds are widely used in petrochemical and pharmaceutical industries. However, they are not recommended for services with strongly corrosive or strongly oxidizing media.
Q: What is the MOQ?
A: We don't have MOQ,but the more quantity,the price lower.
Q: What are your payment terms?
A: Perfer TT,L/C also acceptable.
Q: What surface finish do you provide?
A: 125-150AARH/,we can also customize accoding to your requirements.
