Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel spectacle blind flange in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable stainless steel spectacle blind flange in stock here from our factory. Also, quotation is available.

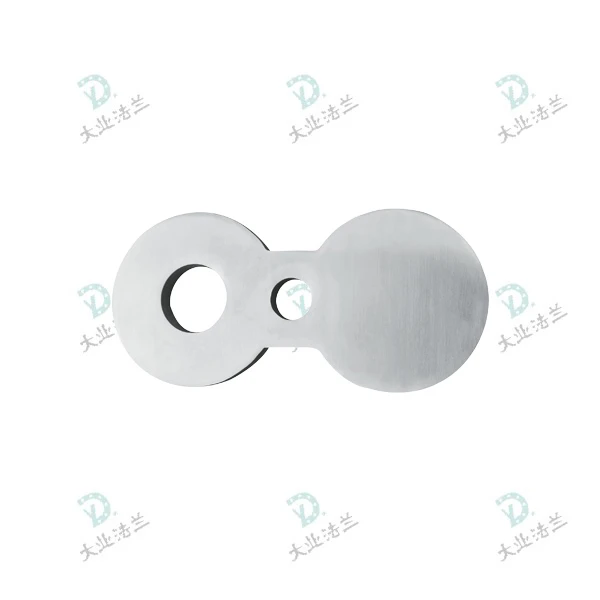

The spectacle blind flange is a highly versatile piping component. It consists of a solid blank on one side and an open ring on the other, connected as a single unit. Its shape resembles the number "8", hence the name figure 8 blind flange.
It is normally installed between two flanges. Rotate the solid blank into position between the flanges to block pipeline flow. Rotate the hollow ring into place to open the pipeline. Operation is flexible and convenient.
Carbon steel is the most widely adopted material for figure 8 blinds, followed by stainless steel. Carbon steel spectacle blind flanges are commonly applied to pipelines carrying neutral and non-corrosive media, while stainless steel spectacle blind flanges offer excellent cost performance for pipelines with moderately corrosive media.
Parameters
|
Standard: |
ASME B16.48, HG/T 21547, Customization |
|
Certifications: |
PED/CE, ISO9001, ISO 45001, ISO14001 |
|
Size: |
1/2"-24"/Dn10-Dn600 |
|
Rating: |
Class150-Class2500 |
|
Material: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H, 310S Super stainless steel: 254SMO/F44,904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625, 600, 718, 750, 601), Hastelloy(276, C-22, C-4, C, X, B-2), Monel(400, 500), Incoloy(800, 825, 020, 028, 925),etc |
|
Facing: |
FF/RF/RJ/MFM/TG |
Product Advantage
- Flexible & Efficient
Integrated structure enabling both pipeline isolation and communication, featuring flexible and efficient operation.
Applications
Applicable to equipment and pipelines requiring periodic maintenance
Such as standby pumps, standby heat exchangers in petrochemical industry.
Dual Isolation Protection
For pipelines carrying toxic, volatile, flammable and explosive media, spectacle blind flanges can be used in conjunction with valves to realize dual safety protection.
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Process
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: Are stainless steel spectacle blind flange forged or plate cut?
A: We normally supply forged ones. If customers pursue cost performance and specify plate-cut type, plate-cut products are also available.
Q: Can UT/PT inspection be carried out?
A: NDT testing including UT & PT can be arranged per customer's requirement, but extra charges will apply.
Q: What stainless steel spectacle blind flanges are recommended in chloride-containing seawater?
A: Spectacle blind flange in F316L is recommended. It performs better against chloride corrosion than F304L.
Q: What is the MOQ?
A: We don't have MOQ,but the more quantity,the price lower.
Q: What are your payment terms?
A: Perfer TT,L/C also acceptable.
Q: What surface finish do you provide?
A: 125-150AARH/,we can also customize accoding to your requirements.
