Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of non-standard stainless steel tee in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable non-standard stainless steel tee in stock here from our factory. Also, quotation is available.

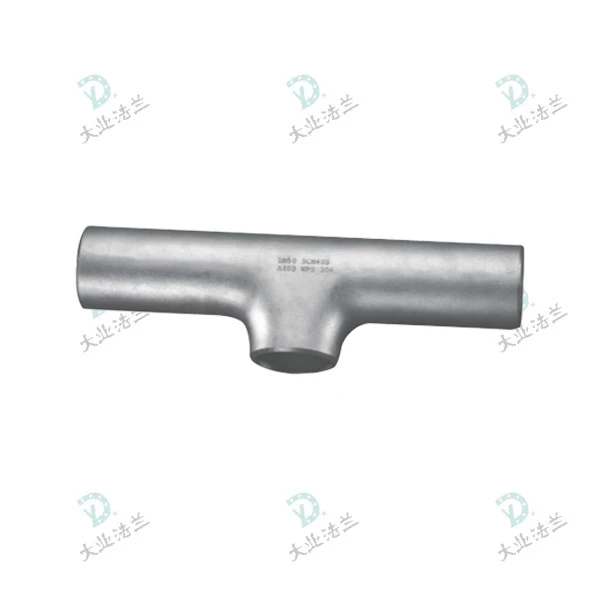

Non-standard stainless steel tees refer to custom‑built industrial piping components whose parameters including dimensional specifications, branch angles, end configurations and structural wall thickness do not comply with general standards such as ASME B16.9 and GB/T 12459.
They are manufactured according to actual service conditions, equipment connections or piping‑layout requirements, to address special flow diversion / combining demands that cannot be met by standard tees.
Parameters
|
Standard: |
Customization:according to your drawings |
|
Size: |
Seamless:1/2"-24"(DN15-DN600) Welded:1/2"-48"(DN15-DN1200) |
|
Thickness: |
SCH5S-XXS |
|
Grade: |
304/L/H, 316/L/Ti/H, 317L, 310/S, 347/H, 321/H, 904/L, S32750/SAF2507, S32205/SAF2205, S31803, S32760, SMO254 |
Product Advantage
- High‑level customization for precise fit‑up
- Enhanced system reliability
- Superior fluid‑flow performance
-
Improved installation efficiency
Applications
OEM supporting for industrial equipment
Piping technical modification & maintenance retrofitting
Special‑purpose process piping systems
Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001

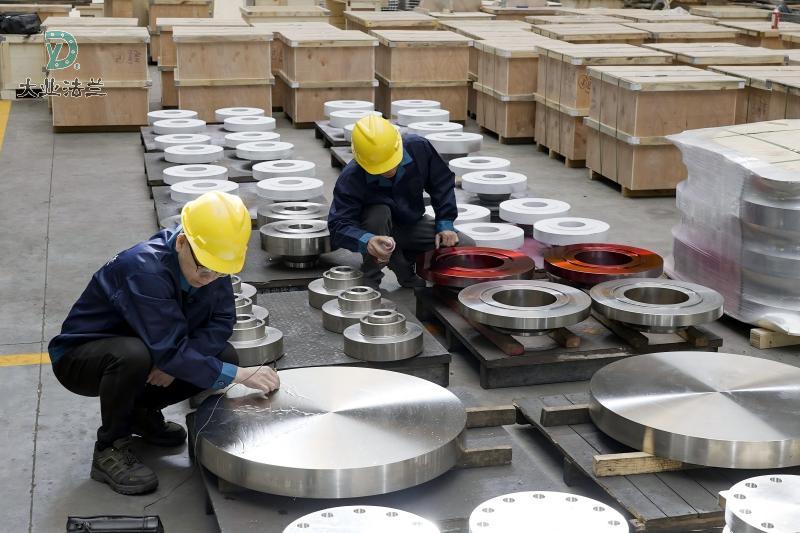

Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: What is the core difference between non-standard stainless steel tees and standard tees?
A: Standard equal / reducing tees are manufactured with dimensions and structures strictly complying with specifications such as ASME B16.9. They feature fixed sizes, mass production, lower cost and short lead time. non-standard stainless steel tees have no unified dimensional standards and are fully custom‑made per customer drawings. They can accommodate special sizes, angles, structures and service conditions, and require separate production with higher cost and longer lead time.
Q: Why are most Y‑type lateral tees non‑standard? What are their advantages?
A: General standards including ASME B16.9 only cover tees with 90° perpendicular branches. Y‑type and 45° lateral tees are not covered by standard specifications, so they fall into the non‑standard category. Their advantage lies in the shallow branch angle for gentle fluid direction change. They deliver far lower resistance coefficient and turbulence level compared with 90° tees, and greatly reduce erosion‑wear and pressure loss under high‑flow‑rate and particle‑laden media service.
Q: How is the pressure‑bearing capacity of non‑standard stainless‑steel tees determined?
A: Non‑standard tees do not have standard pressure classes. Their pressure‑bearing capacity is jointly determined by design wall thickness, material grade, operating temperature and structural configuration. Strength verification shall be carried out based on service parameters prior to customization to finalize wall thickness and structural solution.
