Zhejiang Daye Flange Co., Ltd. is one of the leading manufacturers and suppliers of ss 304 concentric reducer in China. With abundant experience, we are committed to providing high quality flanges made in China with competitive price. We warmly welcome you to buy durable ss 304 concentric reducer in stock here from our factory. Also, quotation is available.

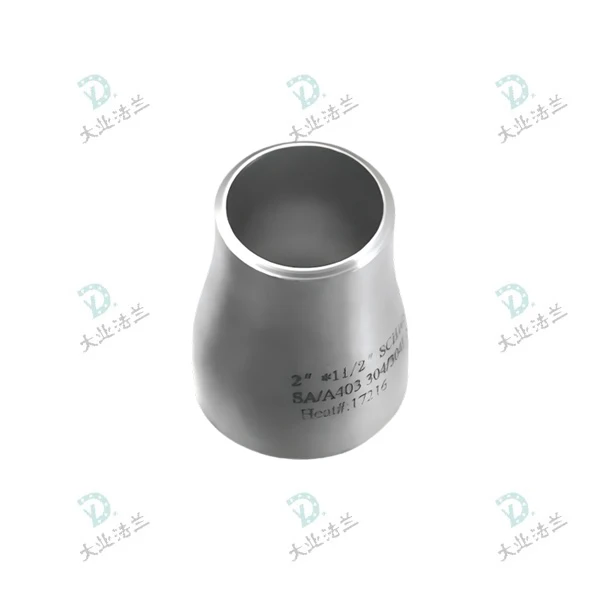

A core product in the steel butt-weld pipe fittings category, the concentric reducer features a symmetrical frustum structure with perfectly aligned central axes at both its large and small ends. It is designed for coaxial connection and smooth diameter transition in pipeline systems.
SS 304 concentric reducer has two core functions: to connect pipes or equipment ports of different nominal diameters for pipeline bore size adjustment; and to ensure gradual fluid velocity changes during the diameter shift, reducing pipeline vibration and system energy loss.
Our product strengths
- Genuine 304 material with full end-to-end supply chain traceability
- Strict wall thickness control with tightly limited thinning rate
- Precision-engineered concentricity and bevel quality for zero installation rework
- Full solution heat treatment with complete passivation
- Every unit delivered with official factory inspection records
- Custom non-standard sizes available, plus a full range of pipe fittings for one-stop procurement
Parameters
|
Standard: |
GB/T12459, ASME B16.9, EN10253-2, EN 10253-4, MSS SP-75, MSS SP-43 |
|
Size: |
Seamless:1/2"-24"(DN15-DN600) Welded:1/2"-48"(DN15-DN1200) |
|
Thickness: |
SCH5S-XXS |
|
Grade: |
Stainless steel: 304/304L, 316/316L, 321, 316Ti, 347/347H, 310S Super stainless steel: 254SMO/F44,904L Duplex steel: F51/2205, F53/2507 Special alloy steel:Inconel(625, 600, 718, 750, 601), Hastelloy(276, C-22, C-4, C, X, B-2), Monel(400, 500), Incoloy(800, 825, 020, 028, 925),etc |
Product Advantage
- Low flow resistance and stable fluid flow
- Uniform pressure-bearing capacity
- Easy alignment during installation
Applications
Vertical riser systems
Medium and high pressure industrial piping
Equipment interface connections

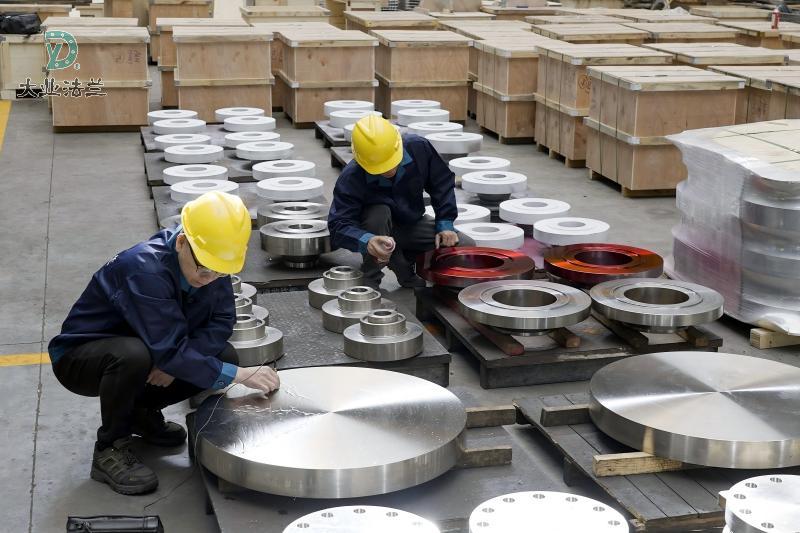

Test
Mill certificate,100%PMI,Tensile Test,Hardness Test,Impact Test,IC Test,etc.it depends on the requirements.
Cerfitications
PED
PED
ISO 45001
ISO 9001
ISO 14001
Packaging
Outer Packaging:
Fumigated wooden crates/Fumigation-free plywood crates/Customized wooden crates
Inner Packaging:
Plastic flange protectors/Bubble wrap/Cardboard/Protective paper
Packaging can be customized to meet your specific requirements.
FAQ
Q: How to confirm genuine 304 stainless steel?
A: Every batch of authentic 304 products comes with a material test report (MTC). For quick on-site verification, you can use a spectrometer to check the content of chromium (Cr ≥ 18%) and nickel (Ni ≥ 8%).
Q: Is there a correct installation direction for concentric reducers?
A: Yes, there is a defined installation orientation. The general rule is to connect the larger end to the upstream side and the smaller end to the downstream pipeline, so that the process fluid transitions smoothly from the larger diameter to the smaller one along the flow direction.
Q: Can concentric reducers be installed on horizontal piping?
A: They are not recommended for horizontal pipelines with liquid drainage or venting requirements. When mounted horizontally, concentric reducers form a low-lying liquid pocket at the bottom and trap gas at the top, which can cause localized corrosion, cavitation, or fluctuations in flow rate and instrument readings.
Q: What is the maximum temperature rating for SS 304 concentric reducer?
A: For ss 304 concentric reducer, the recommended limit for continuous long-term service is 750℃, while it can withstand 800–870℃ under intermittent short-term operating conditions. It delivers stable performance and is fully suitable for routine hot water and low-pressure steam (≤160℃) applications.
